TBC-2B is for use with the Ampex VPR-2B 1" type C broadcast video tape
This TBC is essentially
a later incarnation of the TBC-1. It contains exactly the same functionality
as its predecessor with (possibly) more video memory! I am not sure how
much. This information will be posted as soon as the service manual for
this beast arrives!
Nothing! I have all manuals for this device.

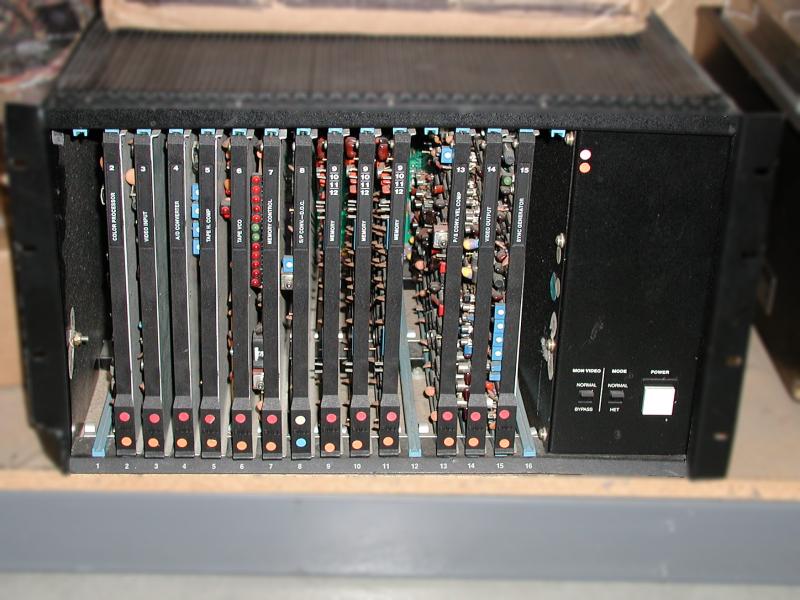

The TBC-2B contains 14 printed circuit boards. The chassis has 16 slots,
but not all are used or are for options. The boards, by slot number, have
the following functions assigned:
1 - Not used.
2 - Color Processor.
3 - Video Input.
4 - Analog to Digital Converter.
5 - Tape H. Comp.
6 - Tape VCO.
7 - Memory Control.
8 - Serial to Parallel Converter & Drop Out Compensator.
9 - Memory.
10 - Memory.
11 - Memory.
12 - Memory.
13 - Parallel to Serial Converter & Velocity Compensator.
14 - Video Output.
15 - Sync. Generator.
