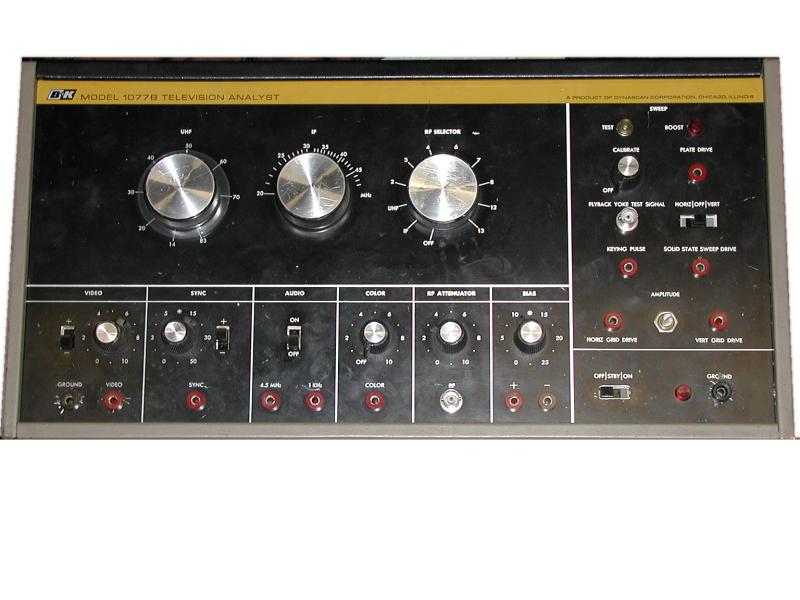

||1077B Television Analyst: The old standby
in hundreds of TV repair shops across the country. It contained a flying
spot scanner to generate test patterns on the tv being serviced.

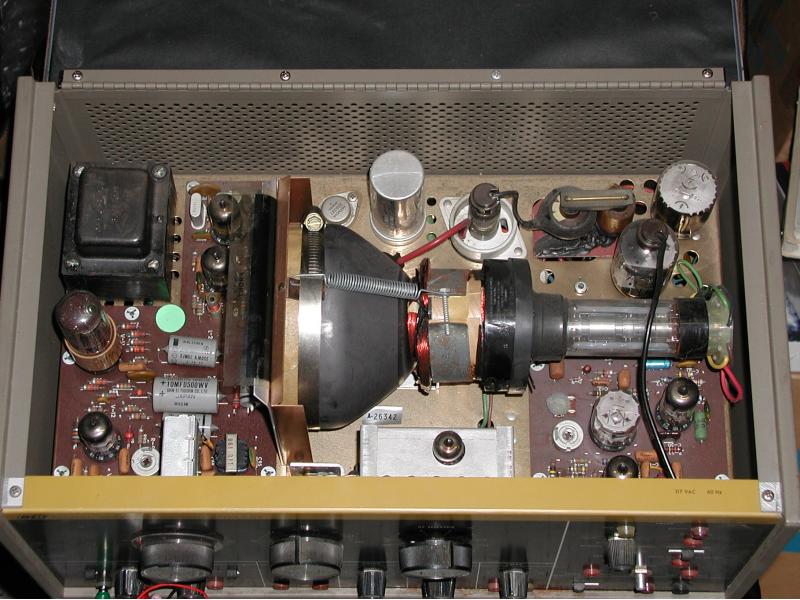

||1077B Television Analyst: The analyzer
insides viewed from directly above. The slide is seen edge on pressed tightly
to the face of the UV phosphor 5 inch CRT.
||1077B Television Analyst: One of the test patterns
it could produce. For those of you who have a 1077 but no slide, print
this out and have a transparency made at the local photocopy store. Email
me if the resolution is not adequate.
||1077B Television Analyst:New
pix! The CRT in operation showing the purple glowing, short
persistance, UV phosphor.
