|LabGuy's World: Extinct Panasonic
Non EIAJ VTR's
Directions: For a
larger view of any image, click on the small image. To return, click your
browser's back button.

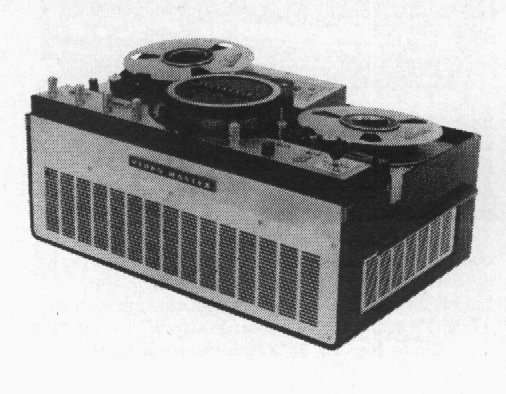

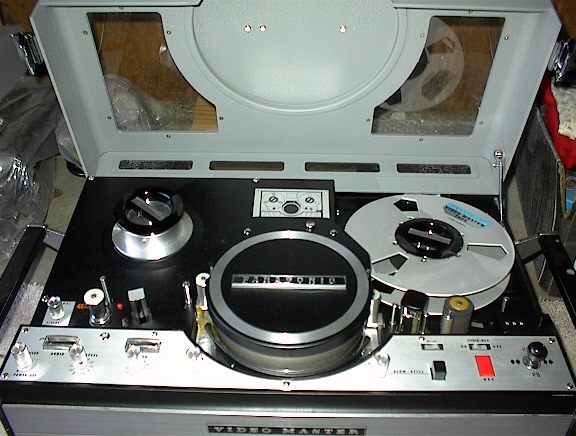

||NV-204: New Photo!
- The new Panasonic NV-204 Solid State Industrial video tape recorder features
five motors, records on one inch tape, provides for complete interchange
ability of tape with any other NV-204, and offers 67 minutes of recording
time. A slow motion feature permits reduction of tape speed to two frames
per second in addition to "stop frame", forward and reverse. A special
"pause" lever permits instant "stop action". Picture resolution is
350 lines, the recorder is color compatible, and fast forward or rewind
can be accomplished in 2-3/4 minutes. Text and photo: Electronics World
Magazine - June, 1967. Photo #2 LabGuy.
||NV-504: New Model
Number & Photo! - Just observed this baby on ebay (12/24/01)!
Missed out on getting it though. No information, can you help?

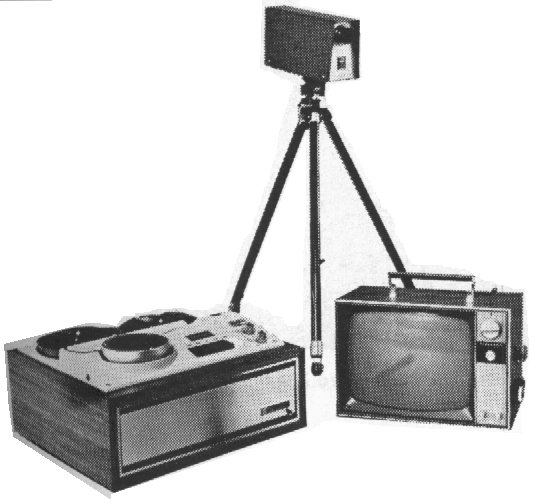

||Tape-A-Vision System: - Spec's: Two heads,
1/2" tape, 7" reels, 12 IPS, 40 minutes record / play time, 55 pounds.
Matt Patoray sent me a rumor of a Panasonic NV-1010 that got 40 minutes
on a reel. Is this it? Text and photo: Electronics World Magazine - November,

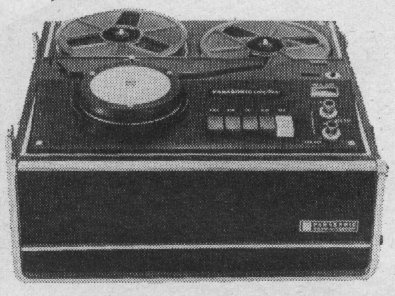

||NV-8100D: - Spec's: Two heads, 1/2" tape, 7"
reels, 12 IPS, 40 minutes record / play time, 52 pounds, $1050 in 1968.
Text and photo: Electronics World Magazine - October, 1968.
Last updated: January 09, 2005
