1972 Dage 800 1" Vidicon Surveillance Camera
.

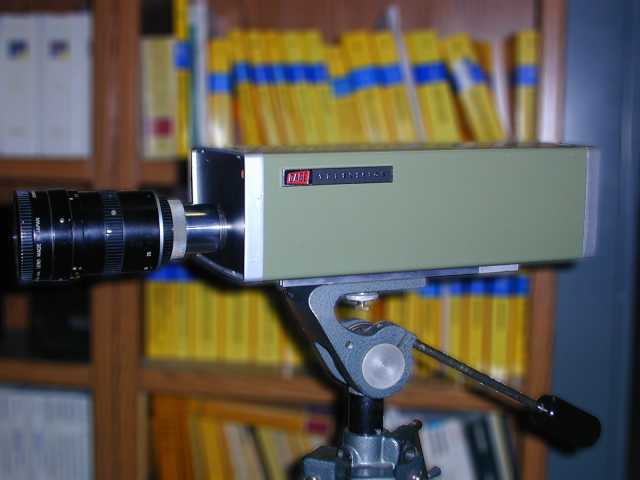

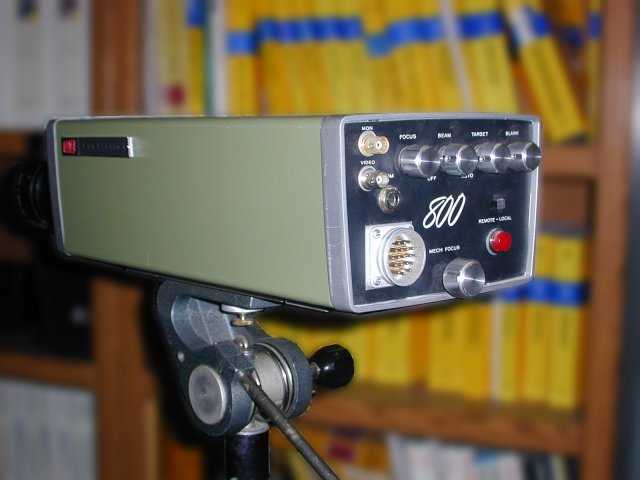

        Got this one of eBay recently. I have no other information, other than it's big and heavy, it uses a 1" vidicon tube and the CCU (Camera Control Unit) and interconnecting cable are missing (as usual). Obviously a very high quality unit and it is in excellent condition. The lens, shown in the pictures, is one of my spares. External controls for Local/Remote Control, Beam, Focus, Target,  Blanking level and Mechanical Focus. Also, jacks for Monitor, Video Out, Intercom and CCU. Internal switches for selecting reverse video, image mirror (left/right reversal) and image flip (up/down reversal). Now that's pretty cool!
        NEEDED: Service manual, operator's manual and its matching CCU and interconnecting cable.
