IVC 9000 Two Inch Helical Scan Production VTR!
SOLD
        This VTR has has two heads and a scanning speed of 1500 inches per second. The tape is two inches wide, and at 8 inches per second a 4800 foot spool gives two hours of program time. The machine measures 49" x 28" x 62" and has the reels at waist height for easy loading and the monitors at eye level. All edit modes are provided through its built in electronic editor.
        The head drum is smaller than in other IVC helical machines, with only a 5-1/4" wrap of tape. The picture is divided into 54 line segments compared to the 16 line segment of a quad machine. This gives a high quality picture which has sufficient time base stability for broadcasting.

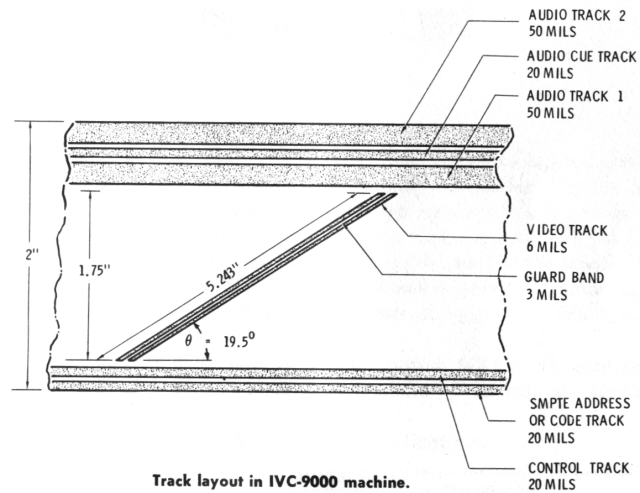

       A completely new track lay out had been devised. The cue track is an audio track of lesser quality than the main audio tracks. The control track has been moved inboard from the edge of the tape for protection, and a new track had been added  outside this for SMPTE or other edit codes. All of these tracks can be erased and recorded separately from each other, and none of them interfered with the video.
        Several new mechanical features had been included. The motor mounting board is made of a special "waffle" construction to give added rigidity to the transport. The tape tension is kept constant by vacuum columns for tape loops, and servo controlled reel motors, with optical sensors on the tape loops. The system can control tension even in rewind and fast forward, which was one of the problems of the quad head machines. This transport system allows the use of nonmetallic capstan, which can drive the tape without a pressure roller.
        Hot pressed ferrite heads with a 1500 hour life span are used. These have a frequency response to 18 Mhz, which permits FM frequencies of 9 to 12 Mhz to be used. This is ideal  for PAL and SECAM, which use higher frequencies than the NTSC color system. The short tracks allow smooth switching and good RF recovery from the tape.
        Electronically, the time base errors can be corrected to +/- 1. 6 nS. The machine can be advanced or retarded by 64 microseconds, about one horizontal line, in steps of 127 nS. This is controlled by a 7.875 Mhz master oscillator which also acts as the reference for all the servos. This frequency is chosen because it is an exact multiple of the horizontal frequencies in both the 525 and 625 line systems.
        The head outputs are compared during the burst time and are set to be equal, thus preventing banding in the playback mode. After head switching, a chroma to luminance ratio is set, either manually or automatically.
[CLICK HERE] to read four technical papers about the IVC-9000.
        Since the time base errors are effected by the drum velocity, tape velocity, and tape tension, a total of four servos are used. These are the head drum servo, capstan servo, tension servo, and reel servo. All are very tightly controlled and are much more complicated than those usually found in VTRs. The head drum is driven by an unusual DC motor which has a high resolution optical disc attached to it for servo feedback control. The disc has 40 lines scored on it, and at the proper rate of rotation, it produces a 6 Khz signal. The capstan motor is a permanent magnet DC motor, which has a similar disc with 1500 lines.
       These are getting rare. Unofficially, only about 35 machines were ever built. When I got this one, two others went to the land fill. From asking around, I estimate that over half of all of the 9000s ever made are now history. Originally selling for over $220,000 a piece in the early 1980's, I got this one for only $200 in 2001. As usual, "It was working when it was last used". Yeah, like in 1989! This poor thing sat in a dusty warehouse for almost 10 years before being rescued from oblivion by yours truly. The dirt is very thick on this old fella. It will take a lot of TLC to get it running. Stay tuned as the cleaning and restoration continues!
        This is VTR #1 from a company called The Post Group, formerly located in Los Angeles. I guess they are no longer in business. Some of you folks, out there, may have edited your TV  programs on this very machine! If so, please write and share your anecdotes with the other readers of this page.
        The first photo shows the machine as I found it, still sitting in the warehouse in Los Angeles. I thought the touch of whimsy was totally appropriate, since just hiking through the building to get to the VTR had gotten me as dirty as the rest of the place! The second photo shows the deck covers open, revealing the myriad of complex tape threading paths and electronics controls. The third photo shows the electronics cage and, below that, the DC power supplies. The fourth photo is a nice close look at the deck. The V shaped assembly below the head drum is the vacuum tension columns where the tape was pulled into during operation. This system is one of the most complex transports ever built. It is really a "helical-ized" quad machine. Think Ampex, look familiar?
        I have all of the manuals and the complete machine. It still requires an external supply of dry compressed air and 220 volt service. If you have any parts, info, tapes, etc., that you would like rescued from the well of time, just drop me a line and I am always enthusiastic to help! The rubber rollers have attained a lovely liquid consistency resembling road tar. Spare parts might be a groove too!
