1973 JFD Model 602 Vidicon Camera
.

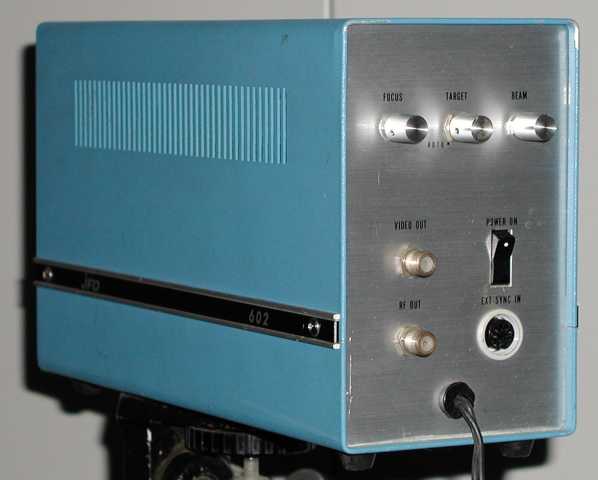

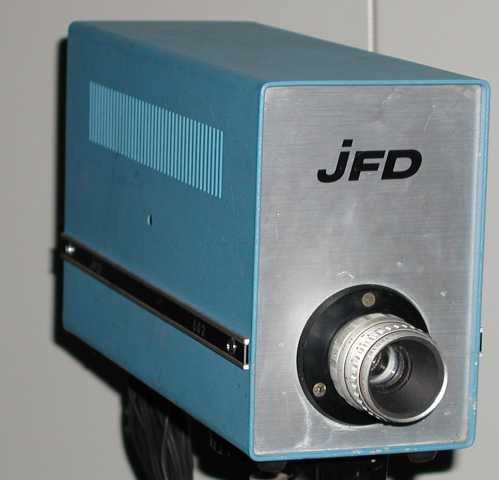

        This is a small, general purpose,  vidicon camera. It uses a one inch vidicon tube for its image sensor. This particular unit is in good cosmetic and fully operational condition. The lens is a general purpose C-mount 25 mm, f 1. 8.  Two F connectors are provided on the back of the unit. One for composite video output, the other for RF output on an unused VHF TV channel. A 7 pin DIN connector allows for external sync drive to be provided to this camera. Electrical adjustments include: camera beam, focus and target settings as well as the ever present OFF/ON switch.
        NEEDED: Service manual for this camera.
