English translation has been provided by my new friend from Poland, Maciej Szymanski. Thank you very much. I have done my best to match the translations to the page. So, please enjoy.

Click to view full size. Back button to return.
Front Cover

"Elektronika-841"
Operation manual
1980
--


Click to view full size. Back button to return.
Page 1



Click to view full size. Back button to return.
Page 2

ATTENTION!
During the purchase of the video camera ask [sales people] to check:
-that video camera function well together with a video tape recorder
-video camera completeness [it just means that the box should contain all required items..]
-seal safety [every soviet device were sealed with a plasticine on one screw..]
-that video camera number [s/n] in a warranty coupons correspond to the number on a bottom of the video camera
-the presence of a shop stamps and sales date in a warranty coupons [a common practice in USSR - almost all consumer goods (even an arm watches, not even mention pocket calculators!) were stamped
on purchase]
Warranty coupons are torn off by service organization people only after the work [reparation]
was completed. Only one coupon should be torn off for each piece of the work.
R e m e m b e r! With the lost of warranty coupon you are loosing the right for warranty
reparation.
Before turning the camera on, get carefully acquainted with the actual instructions, purpose and
arrangement of control elements [operation controls], and a scheme for connecting video camera to a
video tape recorder.
Preserve the case and the lens against dust, dirt, aggressive environment affects, and a
temperatures lower than minus 20 and higher than 50 C.
During storage, transportation and function don't direct video camera lens vertically down.
Don't arrange too long, more than 1 hour, sessions of steady objects, because the moving tube has
a picture "memory" effect.
Store the video camera with the lens cover closed.
Certain video camera shipments may contain schematic and constructive changes, which don't degrade
their parameters.

Click to view full size. Back button to return.
Page 3

COMPLETENESS

Video camera "Elektronika-841" 1 it.
Adapter for fixing the video camera on a photosupport 1 it.
Operation manual for the video camera "Elektronika-841" with warranty and tear-off coupons 1 cp.
Passport for the CRT 1 cp.
Passport for the vidicon 1 cp.
Passport for the lens 1 cp.
Pack box 1 it.
R e m a r k. Passport for the CRT, the vidicon and the lens are pasted into the operation manual.

SAFETY INSTRUCTIONS
Be carefull: there is dangerous voltage of 3000 V inside the video camera.
To prevent accidents, it's strictly prohibited to turn on the video camera with the case opened.
Video camera reparation is only allowed for a persons, having special training on television
equipment reparation.

BRIEF DESCRIPTION
Video camera is intended for amateur video recording together with a following consumer video tape
recorders:
- "Elektronika-501-video"
- "Elektronika-502-video"
- "Elektronika-505-video"
- "Elektronika-508-video"


Click to view full size. Back button to return.
Page 4

- "Elektronika-509-video" and others, that provide video camera with synchronization.

Video camera is forming a simplified television signal of black and white picture, synchronized to a video tape recorder, and a soundtrack signal for recording on a video tape recorder magnetic tape.
For recording a soundtrack there is a microphone 3 in a video camera case (fig. 1 and 2), directed to the scene being shot.
Video camera has a viewfinder 4, intended for the control of a quality of recorded scenes, and for the playback from the video tape recorders "Elektronika-501-video", "Elektronika-505-video",
"Elektronika-509-video" of a recordings made recently.
Inside the video camera handle there is a switch 7, intended for remote switching the tape drive mechanisms of a video tape recorders "Elektronika-501-video", "Elektronika-505-video" and "Elektronika-509-video".
Video camera is connected to a video tape recorder with a cable 4 (fig. 3), which is ended with connector 5.
Video cameras are shipped with a lenses, having constant focus distance - "Industar 50-2" or lenses with variable focus distances - "Meteor -5-1" and their modifications.
For the usage convenience, video camera has a belt.
Shooting with the video camera may be held both from "the hand", either from the unified tripod, therefore, there is a pit 6 for a tripo in the video camera handle (see fig. 1 and 2).


Click to view full size. Back button to return.
Page 5


Fig.1. Video camera with "Industar 50-2" lens:


1 - diaphragm ring; 2 - focusing ring; 3 - microphone; 4 - viewfinder; 5 - handle fastening flywheel; 6 - tripod mount; 7 - recording switch


Fig.2 Video camera with "Meteor 5-1" lens:


1 - focusing ring; 2 - diaphragm ring; 3 - microphone; 4 - viewfinder; 5 - handle fastening flywheel; 6 - tripod mount; 7 - recording switch; 8 - lever for focus distance adjustment

Click to view full size. Back button to return.
Page 6

fig.3. Scheme for connecting video camera to a video tape recorder:


1 - video camera; 2 - video tape recorder; 3 - "CAMERA" jack; 4 - connection cable; 5 - joining connector

MAIN TECHNICAL CHARACTERISTICS

Video camera is powered from the video tape recorder with direct current,  12 Volts The power, consumed by the video camera, no more that 7.2 Watts


Development system with a compulsory synchronization from the video tape recorder:
lines 625
25 frames (50 half-frames / fields) per second
Resolution with the illumination of 1000 lumen and fully opened diaphragm: no less than 350
Video signal rate on a resistance of 75 Ohm, V 1 +0.4/-0.3
Signal/noise ration in the viewfinder, db no less than 40

Click to view full size. Back button to return.
Page 7

Sound sygnal rate (the pressure of 1 Pa), mV 2.5+10
Dimensional sizes, mm:
with "Industar 50-2" lens no more than 320x21x290
with "Meteor 5-1" lens no more than 435x81x290
R e m a r k. Dimensional sizes of the video camera may vary from 320 to 432 mm when complecting with another modification lenses.
Video camera weight, kg:
with "Industar 50-2" lens no more than 2.3
with "Meteor 5-1" lens no more than 3.0
R e m a r k. Weight of the video camera may vary in the interval from 2.3 to 3.0 kg when complecting with another modification lenses.
Video camera is designed to be used in the temperature of plus 25 +/-10 C, atmospheric pressure of 56+106 kPa and relative humidity of 65+/-15%.

PREPARATION FOR WORKING WITH VIDEO CAMERA

Connecting to a video tape recorder

Before working with video camera plug a connector 5 (see. fig. 3) of a video tape recorder cable into a "CAMERA" jack 3, located on a panel of video tape recorder. When plugging in, orient the connector by the jack with direction key [strip?], and after connecotr with a slight push will enter the jack, then turning a cover ring clock-wise (2-3 turns), fix the connector in video tape recorder jack.

RECORDING

In order to record video and sound with a video tape recorder, it's necessary to perform following operations (see fig.1 and 2):
a) prepare video tape recorder according to the operation manual (in 1-2 minutes after turning video tape recorder power on, a luminescence should appear on a viewfinder display 4 of the video camera);
b) remove the cover from the lens, direct the lens to the object and, watching the picture in the viewfinder eyepiece 4, set a most clear and contrast picture, the same time adjusting a lens diaphragm;

Click to view full size. Back button to return.
Page 8

R e m a r k s:
1. If the video camera is supplied with a lens of type "Industar 50-2", then do the diaphragm adjustments turning the ring 1 (see fig. 1), and the focus adjustments turning the ring 2. Set a desirable scale with lever 8.
2. If the video camera is supplied with a lens of type "Meteor 5-1", then do the diaphragm adjustments turning the ring 2 (see fig. 2), and focus adjustments turning the ring 1. Set a desirable scale with lever 8.
c) controlling the video tape recorder, that has a tape drive mechanism remote control, is performed pressing the switch 7 on the video camera handle, thereafter the tape drive mechanism is turned on, and, simultaneously, the indicator led behind the viewfinder eyepiece 4, which signal the recording mode, become lit. Recording termination is performed pressing the switch 7 second time, thereafter the led gets dark.
d) controlling the video tape recorder, that hasn't a tape drive mechanism remote control, is performed by operation controls, located at the video tape recorder panel.
During the next session, the video camera should be turned smoothly in order to be able to review on the viewfinder display the scene being recorded.
It's suggested not to be affected by capturing steady scenes, because in a difference of photography, the video recording gives an opportunity to show an action in it's dynamic. [Somehow non-technical language.]


Click to view full size. Back button to return.
Page 9

In order to get quality soundtrack recording, provide a neccessary level of the sound recording, adjusting the distance between a sound source and the video camera microphone, doing in certain cases probe recordings.
For the quality sound recording during the session of type "interview", it's suggested to use external microphone, connecting it directly to the video tape recorder.

PLAYBACK
In order to play recording back, perform a tape rewind and set a video camera in convenient state
to watch the viewfinder screen, put the tape recorder into "playback" mode.

VIDEO CAMERA SERVICE
Keep video camera clean, and wipe it with dry clean brush.
Perform dust removal from the lenses and viewfinder with a soft fiber brush or a stream of dry air
from the gum bulb [not sure about eng. equiv.]. In a certain cases it's possible to use well
laundered and boiled batist napkin.
To prevent scratches on the optical details, cleaning should be done without extensive force.
During the storage, video camera should be kept the handle up on the special ledges on a top side
of the case.
Avoid a contact of connecting jacks with the case and other video camera parts, as it may cause a
mechanical demages.
Don't keep the video camera near strong magnetic fields, sources of radio noise (working electric
drives, generators, transformators and so on), in a conditions of too low or too hight
temperature, high humidity or extensive dust. To keep normal video camera function during a long breaks in
usage, store it in a standart package in a dry place with the temperature of 25 +/-15 C.
Clean a dirty surface of the video camera case and connector

Click to view full size. Back button to return.
Page 10

cable with the soft fabric, and especially dirty surfaces wash with a soap mixture with the helping of sponge, thus don't allow a dew to get inside the case.

WARRANTY OBLIGATIONS
Video camera conform to the reference model and satisfy technical requirements for the video
camera. [Common soviet idiom]
Warranty period for the video camera is calculated in a term of 12 monthes since the day of
purchase. With an absense of a dealer organization sign on a warranty and tear-off coupons, the warranty
period is calculated since the date of manufacture by the plant. [Russian idiom: "with an absense"
- not even "without a presense"]
Without showing the warranty coupon or when a seales on a video camera were demaged, the claims
about the video camera functioning quality aren't be accepted and warranty reparation isn't
performed.
In case of unsatisfactory video camera functioning, owner has a right for free reparation during
the warranty period. Reparation of the video camera is performed by the service enterprise, which
service the region, where the owner resides in.
The list of enterprises, performing video camera reparation, is given in a appendix.
Conclusion of a service enterprise about the neccessity for the video camera reparation is a
mandatory requirement for the owner, and in case of it's violation, a warranty reparation isn't
performed. [Yes, no "please" and "sorry", just "must" and "have to"]
Non-functioning video camera replacement is carried out by the dealer network only after the
conclusion of a service enterprise and in accordance to the actual replacement rules.


Click to view full size. Back button to return.
Page 11

WARRANTY COUPON

MA [Manufacturing Association - soviet idiom] "Elektronika"

Price 850 rub.

Warranty coupon
Video camera "Elektronika-841" __
CRT of type __
Vidicon of type __
Objective of type __

Date of manufacturing __

Address for sending the complains about the quality:
Voronezh city, MA "Elektronika" plant, Staryh Bol'shevikov str. [Old Bolshevik's street], bld. 20

OTK [OTK stands for "Quality control department" - this acronym has to be present on every goods
"made in USSR". As all soviet people know, despite the title, it has nothing with quality in
common.] representative of the manufaturing plant __(signature and OTK stamp)

To be filled by the shop
Date of purchase __
Sales man __(signature clearlly or stamp)
Shop stamp __

To be filled by the service organization
Checked in for the warranty service __(the name of service enterprise)
Warranty number __


This page intentionally left blank Click to view full size. Back button to return.
Page 13
Click to view full size. Back button to return.
Page 14
Click to view full size. Back button to return.
Page 15
Click to view full size. Back button to return.
Page 16
Click to view full size. Back button to return.
Rear Cover
Click to view full size. Back button to return.
CRT Data sheet Side 1
Click to view full size. Back button to return.

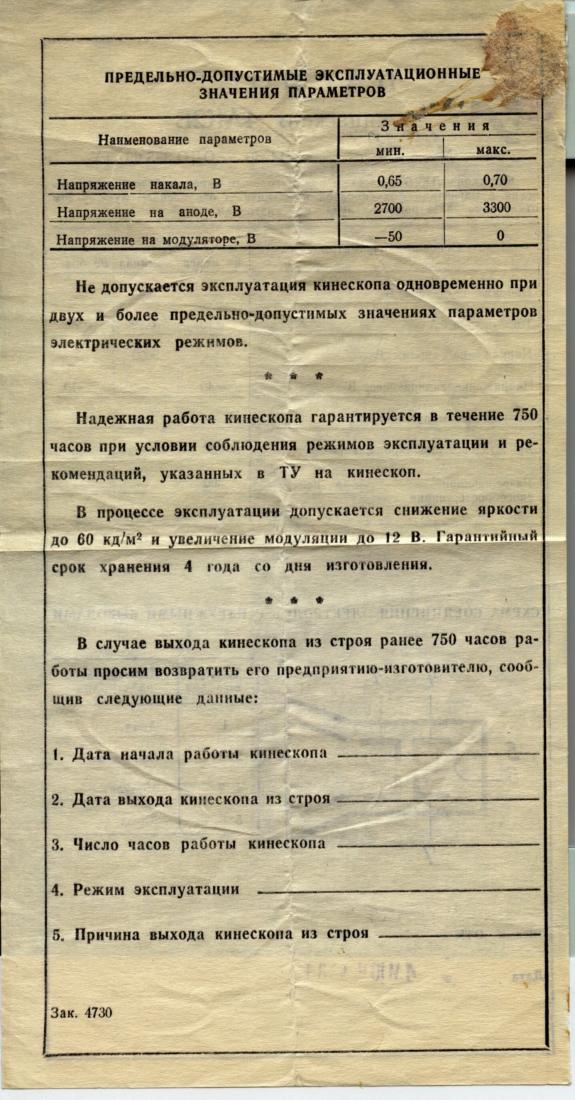

CRT Data sheet Side 2
Click to view full size. Back button to return.
CRT Quality Assurance Report???
Click to view full size. Back button to return.

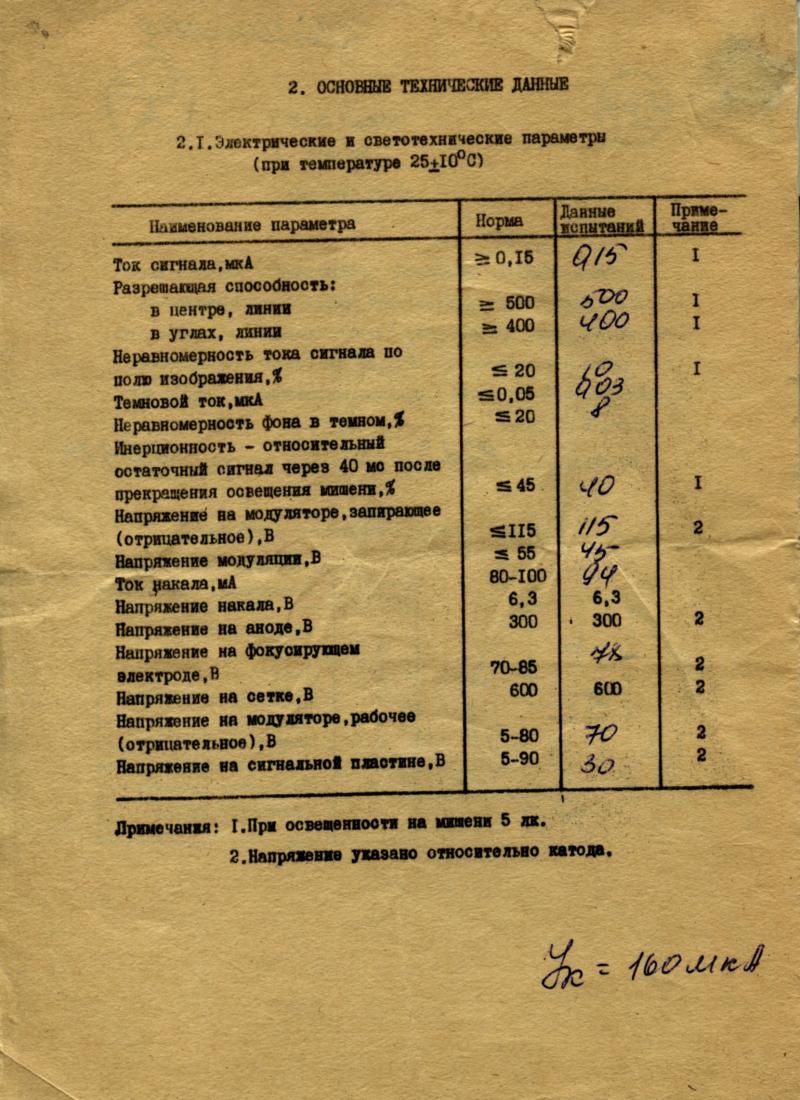

Vidicon Data Sheet #1
Click to view full size. Back button to return.
Vidicon Data Sheet #2
Click to view full size. Back button to return.
Vidicon Data Sheet #3
Click to view full size. Back button to return.
Vidicon Data Sheet #4
Click to view full size. Back button to return.
Vidicon Data Sheet #5
Click to view full size. Back button to return.

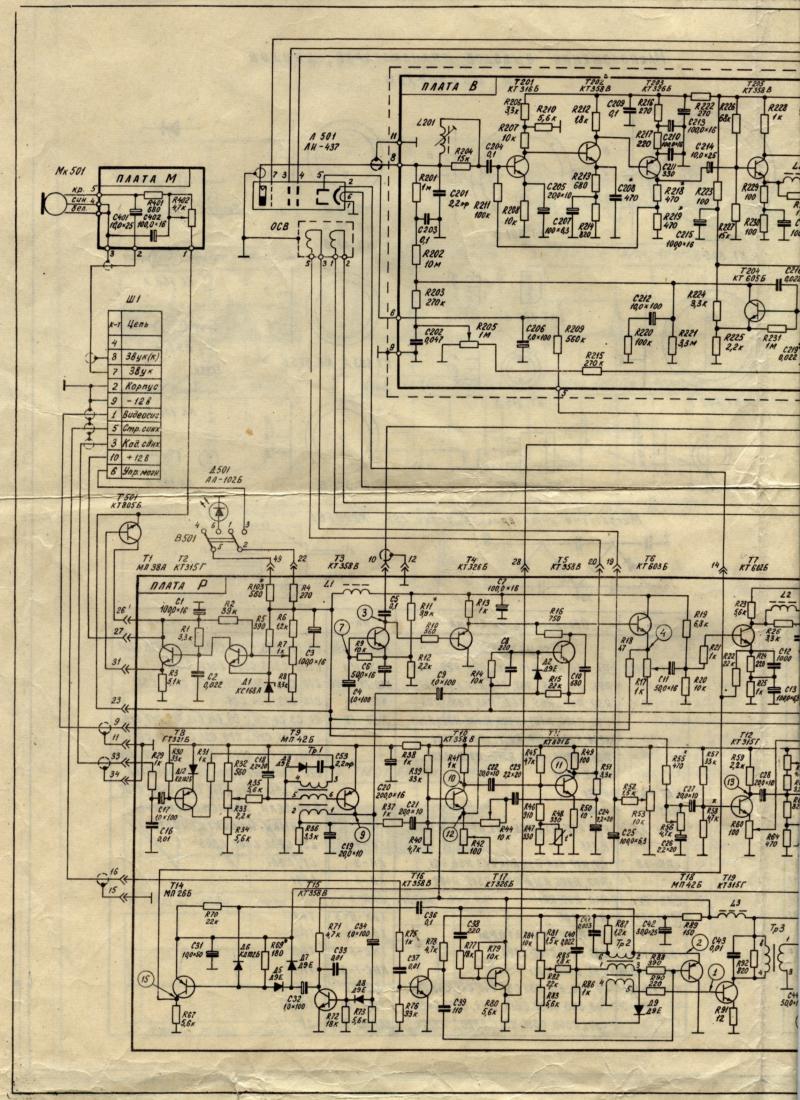

Camera Schematic Sheet #1
Click to view full size. Back button to return.
Camera Schematic Sheet #1
